ThinMan uses specific network ports to communicate with remote devices. When remote devices are behind either a firewall or a router, it may be necessary to configure those ports for ThinMan to get access to the remote devices. The following table describes the ports used by ThinMan (Incoming Ports are those listened by ThinMan software, Outgoing Ports are those connected on devices by ThinMan software).
The ports must be open on the operating system firewall or on the network firewall.
NOTE: Incoming and Outgoing Ports
Incoming Ports: ThinMan <---- Devices
Outgoing Ports: ThinMan ----> Devices
¶ Incoming Ports
| Port Type | Port Number | Service or Process | Description |
|---|---|---|---|
| TCP | 443 | ThinManServer | Communication between ThinMan Server and devices |
| TCP | 20080 | ThinManServer | HTTP Server for Firmware Upgrading |
| UDP | 137, 138 | Various | File sharing for ThinMan Repository (needed for Contextual Menu - Capture Image and Apply Image for Windows Embedded, see more at https://technet.microsoft.com/en-us/library/cc731402.aspx) |
| TCP | 139, 445 | Various | File sharing for ThinMan Repository (needed for Contextual Menu - Capture Image and Apply Image for Windows Embedded, see more at https://technet.microsoft.com/en-us/library/cc731402.aspx |
¶ Outgoing Ports
| Port Type | Port Number | Description |
|---|---|---|
| TCP | may vary, dynamic | To contact the device; the port may vary and depend on the configuration on the device (by default the device choose the first free port starting from 1024). You can change the port in the device configuration. |
| UDP/TCP | 1680 | To Browse Thin Client using TCP transport Request from ThinMan Server to Thin Client |
| TCP | 5900 | To Remote Assistance Thin Client |
¶ Graphical representation

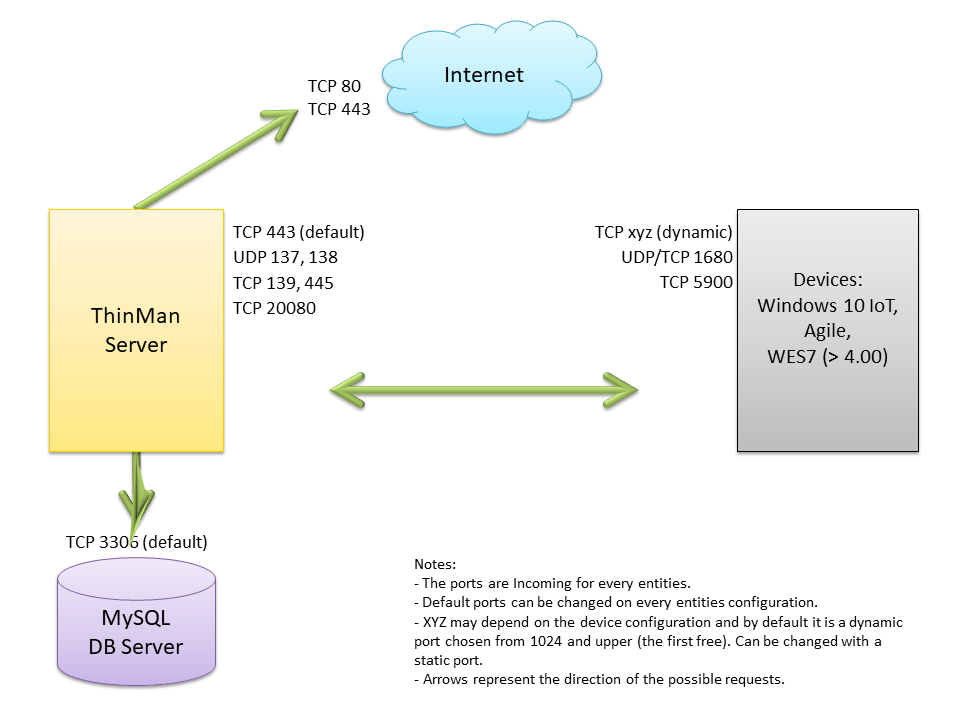

¶ Without ThinMan Gateway

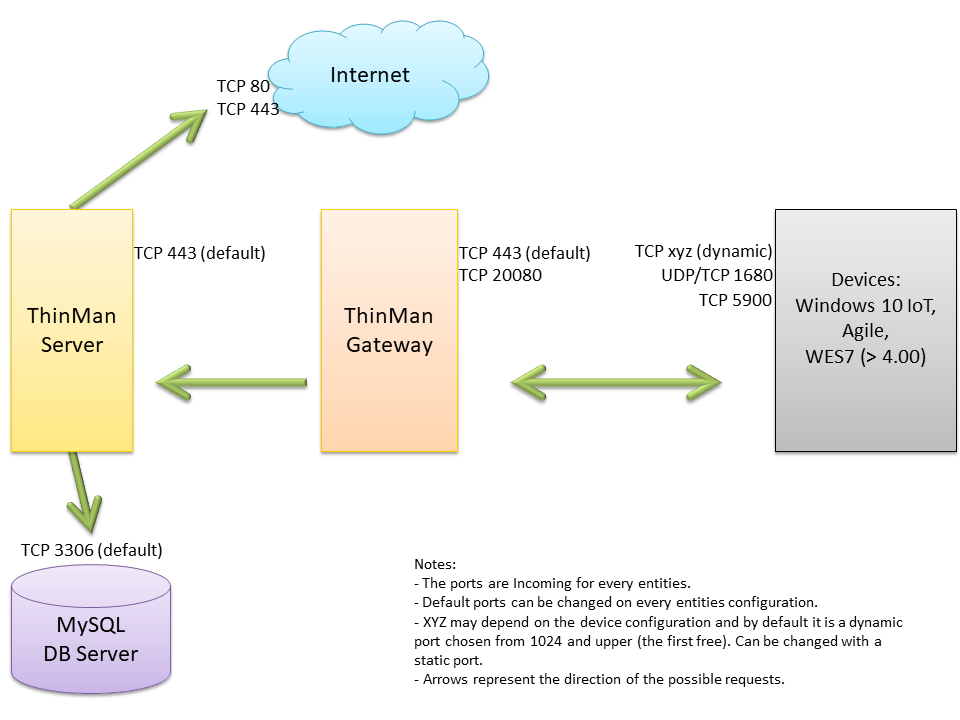

¶ With ThinMan Gateway
